Choosing the right process for robot components manufacturing starts with the part, not the machine. A compact joint housing, a thin-wall chassis, and a repeat-production clip may belong to the same robot but require different manufacturing routes. Engineers and sourcing teams should compare geometry, stock form, critical interfaces, design maturity, production demand, secondary operations, and inspection needs before choosing CNC machining, sheet metal fabrication, metal stamping, or a hybrid process.

CNC Machining vs Sheet Metal vs Stamping for Robot Components: How to Choose

Start by asking whether the part is fundamentally a solid three-dimensional component, a fabricated sheet structure, or a thin repeatable formed part. Then review precision, design stability, and expected demand. CK Metal Tech’s existing process guidance similarly treats geometry, stock form, design maturity, critical features, and expected production demand as key process-selection inputs.

Start With Part Geometry and Material Form

Bar, plate, or block stock points toward machining when the component needs deep features, bearing seats, threads, several working planes, or closely related datums. A chassis, cover, enclosure, or frame made from consistent sheet thickness is usually a better sheet metal candidate. Stamping becomes relevant when geometry can be blanked, pierced, bent, formed, or drawn from sheet or coil and repeated with stable tooling. CK Metal Tech’s existing CNC-to-stamping guidance also starts by separating solid stock geometry from parts that can be produced from sheet or coil.

Then Check Precision, Design Maturity, and Production Demand

Not every dimension on a robot drawing deserves the same process capability. Bearing locations, motor interfaces, alignment datums, shafts, and sensor mounting features may control function, while covers and noncritical edges can often use more flexible tolerances.

Design maturity is equally important. CNC machining and laser cutting with bending are easier to revise while a robot design is changing. Dedicated stamping dies carry more revision risk. There is no universal production quantity at which stamping automatically becomes economical; tooling, geometry, secondary work, material behavior, and lifetime demand all affect the decision.

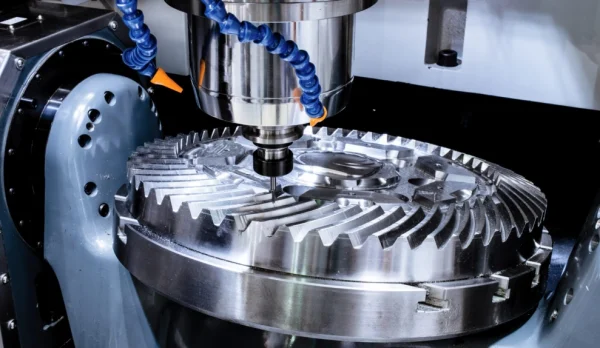

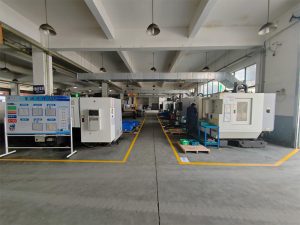

When Is CNC Machining the Right Choice for Robot Components?

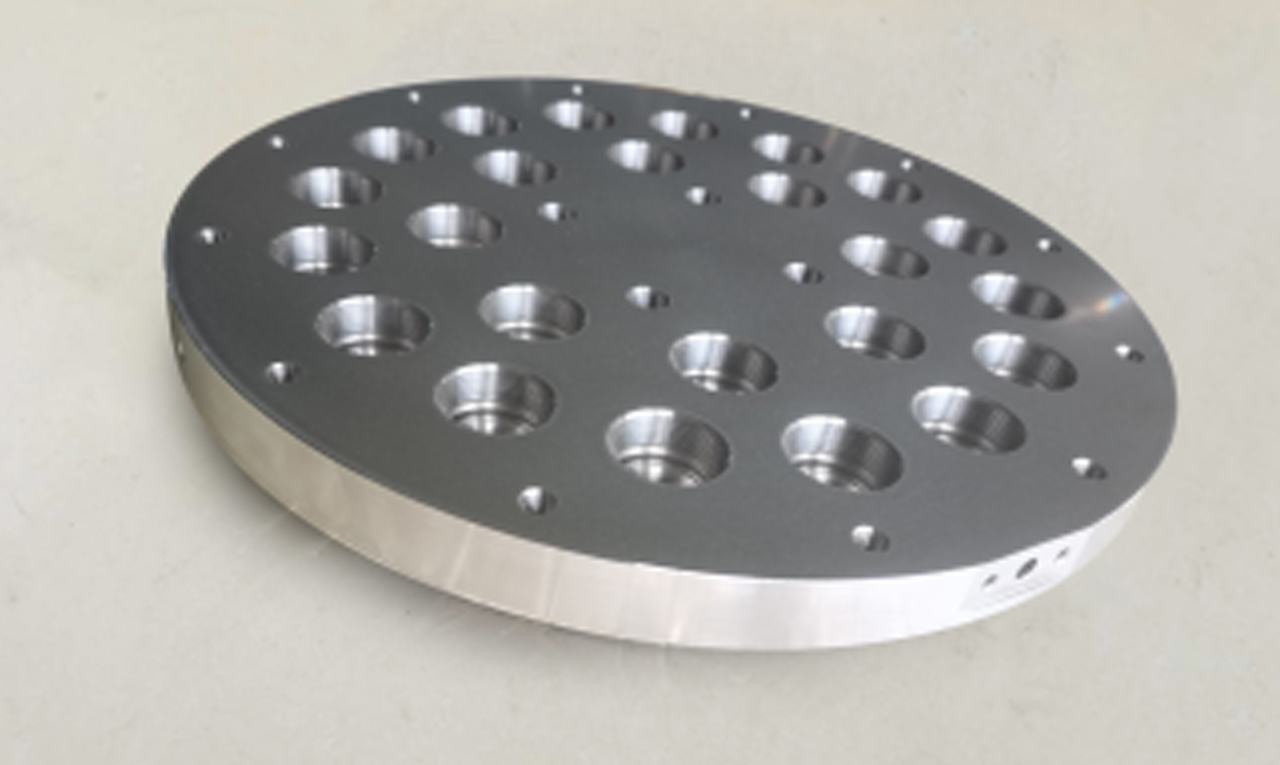

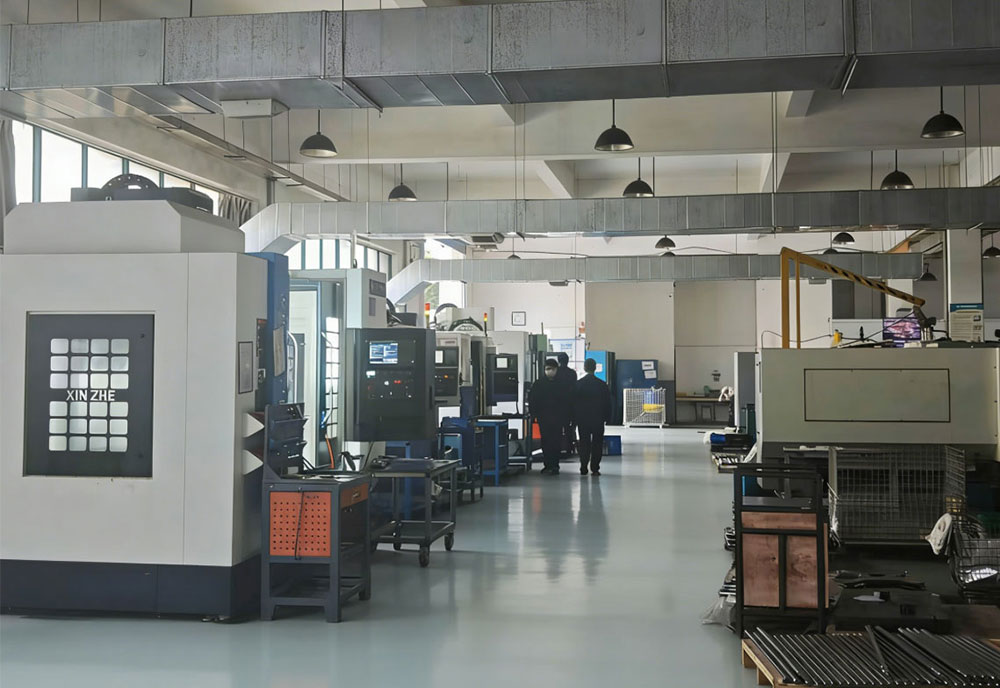

Use CNC for Precision Interfaces and Complex 3D Components

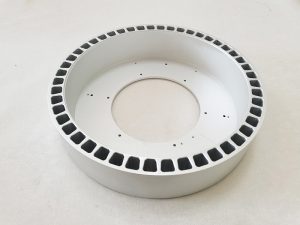

CNC machining fits robot components that depend on controlled three-dimensional geometry, such as joint housings, shaft-related parts, motor mounting interfaces, bearing seats, machined datums, or multi-plane threaded features. It is also useful during prototype and pilot stages because design changes do not require a dedicated forming die. CK’s published process comparison identifies prototypes, changing designs, solid geometry, precision bores, threads, and datum faces as conditions that can favor machining.

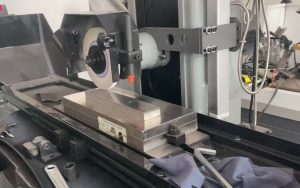

When requesting CNC machining for robot components, identify functional datums and critical interfaces instead of tightening every dimension. Confirm how the workpiece will be located, which features can remain in one setup, whether grinding or finishing follows machining, and how assembly-critical geometry will be inspected.

Know When CNC Machining Becomes an Expensive Route

Machining can be inefficient when large amounts of stock must be removed to create a simple thin-wall structure. A robot enclosure, cover, or broad mounting structure may be better suited to cutting and bending if only a few areas require high precision.

In that situation, separate the base structure from the precision interfaces. A fabricated or stamped body can create most of the geometry while CNC is reserved for bearing bores, datum faces, threads, or other critical features. CK’s current process guidance also recognizes stamped-base-plus-machined-critical-feature routes where forming can create the main geometry but precision interfaces still require secondary work.

When Is Sheet Metal Fabrication Better for Robotics?

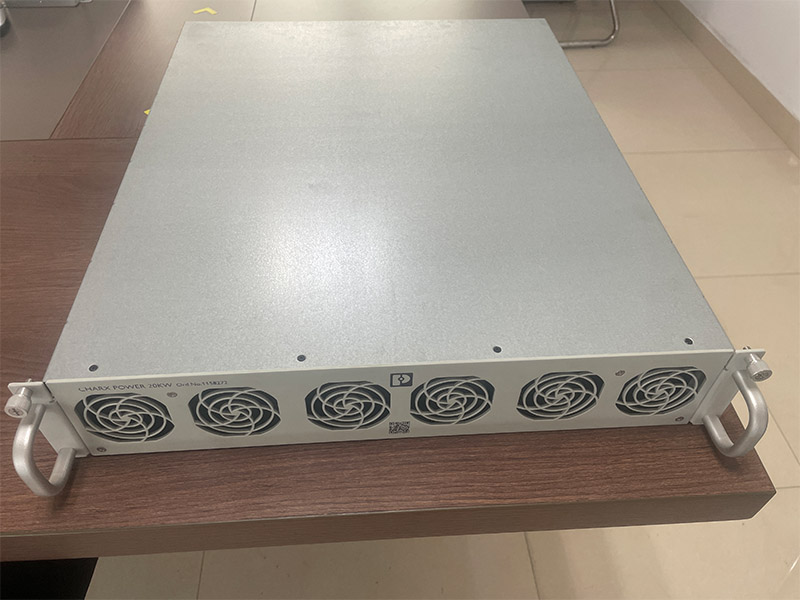

Use Sheet Metal for Chassis, Covers, Enclosures, Frames, and Brackets

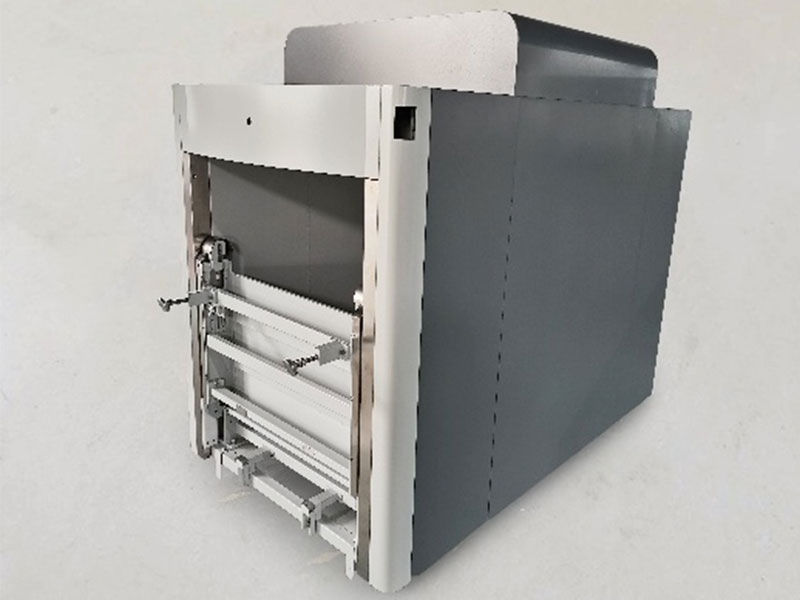

Sheet metal fabrication is a strong candidate for structures made from relatively consistent wall thickness: robot chassis, equipment covers, control enclosures, mounting frames, panels, and structural brackets. Cutting, punching, bending, riveting, and welding can build these forms without machining them from solid stock.

For sheet metal fabrication for robotics, define material, thickness, bend geometry, joining method, finish, critical interfaces, and assembly requirements. CK Metal Tech publicly lists laser cutting, CNC punching, bending, riveting, and welding within its sheet metal capability, and industrial automation is among the applications stated on the site.

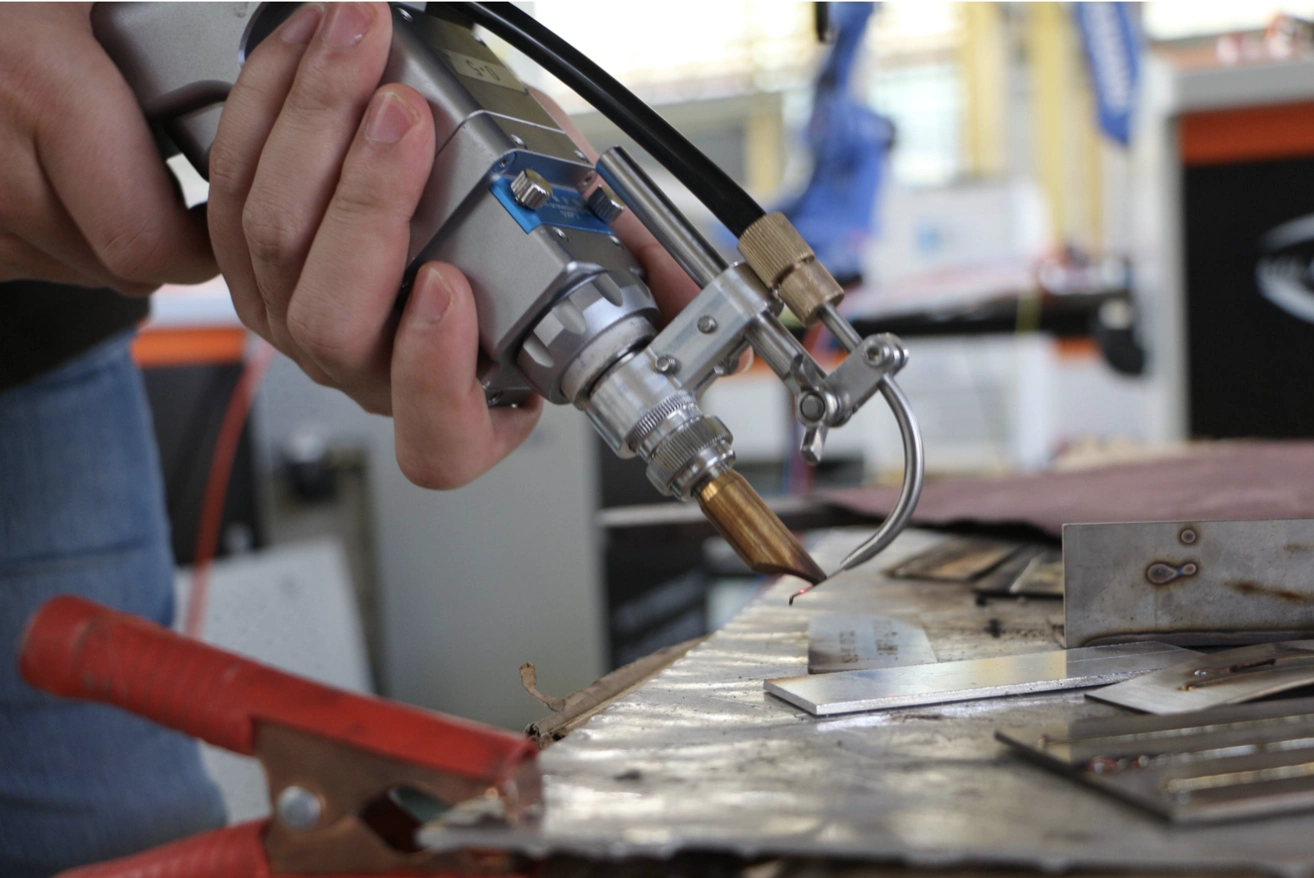

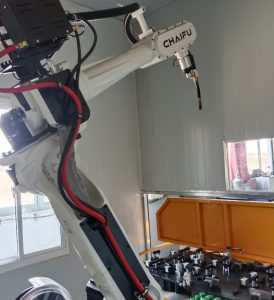

Control Bend Accuracy, Welding Distortion, and Datum Stack-Up

A fabricated assembly can create fit problems even when its individual pieces are acceptable. Bend variation, welding distortion, tolerance accumulation, or finishing on mating areas may shift motor, sensor, or mounting interfaces.

Mark important datums before production and decide which dimensions need post-weld inspection. Fixture design, welding sequence, heat input, and early design review can affect dimensional stability in welded sheet structures. Where a bearing or motor interface must remain tightly controlled, post-fabrication machining may reduce assembly risk.

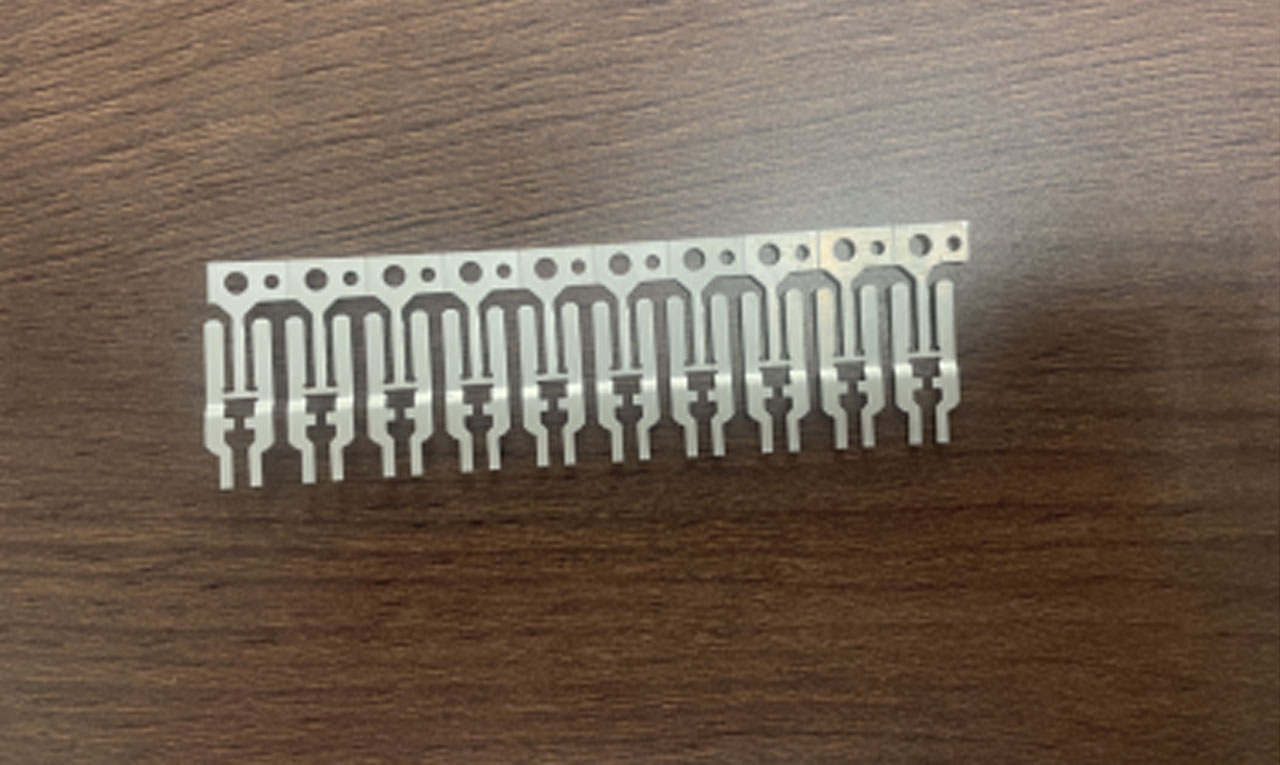

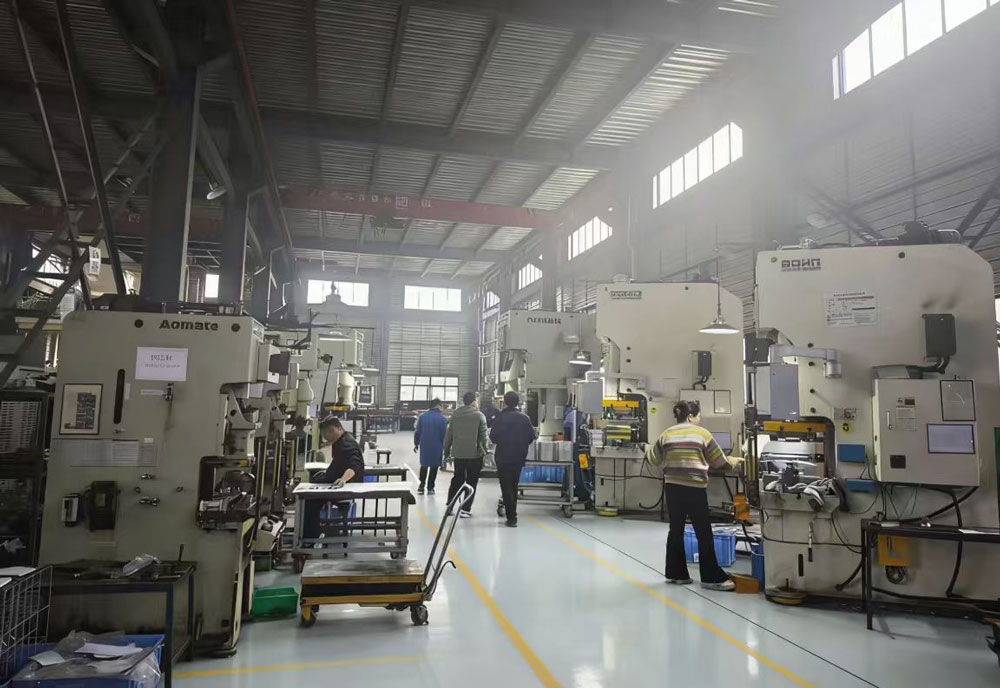

When Does Metal Stamping Make Sense for Robot Components?

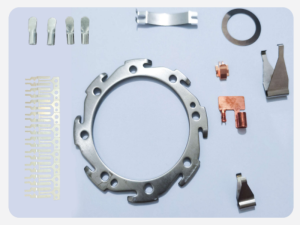

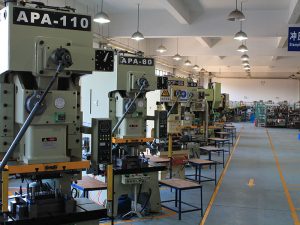

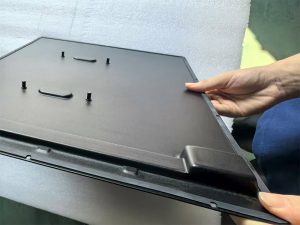

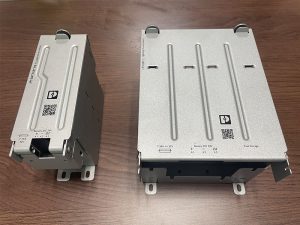

Use Stamping for Thin, Repeatable, Feature-Dense Components

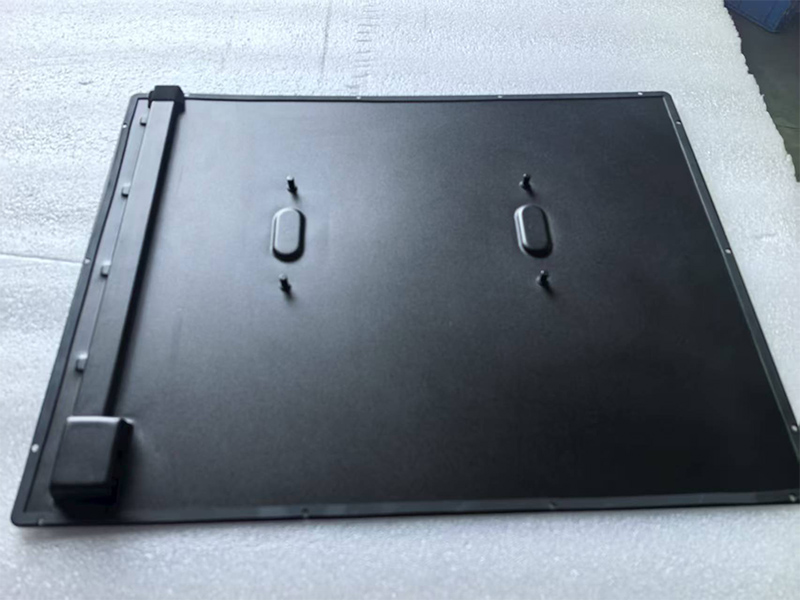

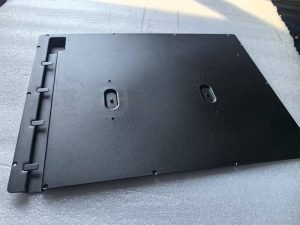

Metal stamping becomes attractive when a robot component uses sheet or coil, has stable geometry, and will repeat enough to justify tooling. Possible candidates include retainers, clips, shields, thin brackets, spring features, shims, sensor flags, and parts combining holes, tabs, bends, or formed details.

Stamping does not mean every feature must come directly from the die. Tapping, drilling, machining, coating, or assembly may remain necessary; CK’s published process guidance specifically notes that precision bores, threads, bearing locations, datum faces, and similar features can remain secondary operations. When evaluating metal stamping and tooling for robot components, confirm material and thickness, forming feasibility, burr-sensitive surfaces, critical dimensions, secondary operations, revision status, and expected program demand.

Do Not Commit to Stamping Tooling Before the Design Is Stable

Production tooling becomes risky when joint geometry, mounting interfaces, material thickness, or customer requirements are still changing. Late revisions can require die modification and another round of trials and sample approval.

Prototype validation and DFM should therefore happen before hard-tool release. Before tooling approval, CK’s existing guidance recommends confirming material, thickness, interfaces, critical dimensions, finish, drawing revision, and expected demand rather than relying on a fixed volume rule. Purchasing teams should also account for tooling maintenance, secondary operations, inspection, finishing, and possible modification costs.

When Is Hybrid Manufacturing Better Than a Single Process?

Combine Fabrication or Stamping With CNC for Critical Features

Robot components do not have to fit one process exclusively. A welded structure can be machined afterward to establish a motor datum or bearing interface. A stamped base can receive drilling, tapping, reaming, milling, or grinding where the functional requirement exceeds what forming should control.

A hybrid route makes sense when fabrication or stamping creates most of the geometry and a short secondary operation controls only critical features. It becomes less attractive when nearly every surface still needs machining or forming variation prevents repeatable fixturing. The same principle appears in CK’s existing CNC-to-stamping guidance, where a stamped base can be combined with secondary machining for precision features.

Common Robot Component Manufacturing Mistakes and How to Prevent Them

Avoid Over-Machining, Over-Tolerancing, and Premature Tooling

Three errors create avoidable cost: machining a thin structure from solid stock when fabrication could perform the function, applying tight machining-style tolerances to every fabricated or stamped feature, and approving production dies before the design is stable.

A useful DFM review classifies features as function-critical, assembly-critical, or noncritical. It then matches each feature to the stock form and manufacturing process that creates it most naturally. Precision machining or special inspection should be reserved for requirements that affect performance or assembly.

What Should Be Included in a Robot Components Manufacturing RFQ?

Give the Supplier Enough Information to Recommend the Manufacturing Route

Send the current 2D drawing and STEP model, material and stock form, part function, critical datums and tolerances, prototype quantity, expected repeat demand, finish, inspection requirements, mating components, assembly conditions, and revision status. For tooling projects, state expected program demand and whether the design is frozen. CK’s published sourcing guidance similarly calls for current drawings, STEP files, material, quantities, critical tolerances, secondary operations, finishing, and inspection requirements when comparing routes.

Also identify where process changes are acceptable. This gives the supplier room to propose a fabricated body with machined datums or move a stable thin component toward stamping without changing the functional requirements.

How to Choose a Robot Components Manufacturing Supplier

Compare Process Selection, DFM, Inspection, and Multi-Process Capability

A supplier should explain why the proposed process fits the component and what would justify a different route. Compare DFM feedback, material capability, tooling responsibility, machining and forming resources, secondary finishing, inspection planning, revision control, and assembly coordination—not only unit price.

CK Metal Tech lists machining, sheet metal processing, metal stamping, tooling design and manufacturing, surface finishing, and component assembly within its integrated precision metal manufacturing capabilities. That combination is relevant when one robot assembly contains machined interfaces, fabricated structures, stamped parts, and secondary operations that must work together.

The actual drawing still controls the decision. CK Metal Tech should be evaluated against the component’s geometry, tolerances, volume, finish, inspection, and assembly requirements rather than a capability list alone.

Conclusion

Robot components manufacturing works best when process selection follows geometry first, then critical precision, design maturity, production demand, and secondary operations. CNC suits many solid and precision-interface components; sheet metal fits many chassis, covers, frames, and brackets; stamping suits stable repeat formed parts; and hybrid routes can combine them.

For a process review, prepare the drawing, 3D model, material, critical dimensions, application, finish, prototype and production quantities, and inspection needs. Buyers can contact CK Metal Tech to discuss manufacturability without assuming that one process is automatically the right choice.

FAQs About Robot Components Manufacturing

Which robot components are usually CNC machined?

Parts with complex 3D geometry, precision bores, threads, bearing locations, motor interfaces, or important datum relationships are common CNC candidates. Material, tolerances, quantity, and secondary requirements still need review.

Is sheet metal fabrication suitable for robot chassis and enclosures?

Yes, when the structure uses relatively consistent sheet thickness and can be cut, bent, riveted, or welded. Precision motor or bearing interfaces may still require secondary machining.

When should a robot component move from CNC or laser cutting to stamping?

Consider stamping when the geometry suits sheet or coil forming, the design is stable, and repeat demand can justify tooling and validation. There is no universal quantity threshold.

Can one robot component use both stamping and CNC machining?

Yes. Stamping can create the base geometry while machining, drilling, tapping, reaming, or grinding completes critical interfaces. The hybrid route should be evaluated as a complete manufacturing process rather than by press cost alone.

A good BMS enclosure design must protect electronics without creating problems in sealing, EMI, heat dissipation, assembly, or repeat production. For EV and energy storage projects, define the operating environment first, then select the material, sealing concept, grounding strategy, thermal path, and manufacturing route.

What Should You Define Before Designing a BMS Enclosure?

Define the Application, Environment, and Mechanical Requirements First

Start with installation conditions. Confirm whether the battery management system is used in a vehicle, stationary energy storage equipment, or another industrial application, then define water and dust exposure, vibration, temperature, service access, PCB envelope, mounting points, connectors, and cable routing. IEC 60529 classifies enclosure protection under the IP Code, so an IP target is a project requirement to verify, not a generic feature of every metal housing.

Before CAD release, review likely failure modes: water ingress, EMI leakage, trapped heat, connector misalignment, weld distortion, and coating on functional contact surfaces. Convert each risk into a drawing note, inspection point, or validation requirement.

How to Choose the Right BMS Enclosure Material

The confirmed BMS enclosure offering includes AL5052, AL6061, and SECC. Selection depends on geometry, forming, weight, corrosion exposure, grounding, thermal behavior, finish, and cost.

AL5052 vs AL6061 vs SECC: Which Fits the Project?

AL5052 is commonly selected where formability and corrosion resistance matter. AL6061 is widely used in engineering applications where strength, machining, and structural features are important. Electrogalvanized steel provides another route where steel stiffness, forming, conductivity, and corrosion protection are useful. Primary producers describe these material families in similar terms.

For procurement, specify grade, temper where relevant, thickness, finish, and whether alternatives may be proposed. Check substitutions against bending, joining, grounding, thermal, and finishing requirements.

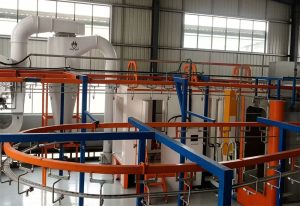

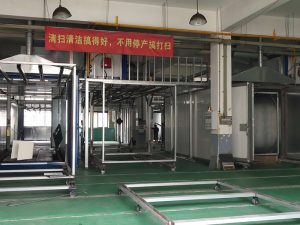

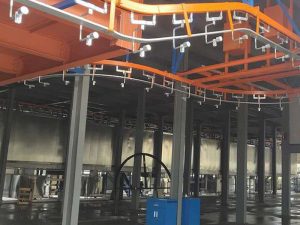

If coating or anodizing is planned, mark sealing faces, grounding zones, threads, and mating surfaces on the drawing. The related powder coating for sheet metal enclosures guidance is useful because coating buildup on functional interfaces can create assembly problems rather than cosmetic defects.

How to Design BMS Enclosure Sealing and IP Protection

Why BMS Enclosures Leak

Leakage may start with flange distortion, uneven closure force, poor surface condition, connector penetrations, or incorrect gasket compression. Welding matters because a housing can look acceptable while the sealing face has moved out of flatness.

Before prototype release, review flange geometry, lid stiffness, fastener spacing, gasket retention, connector openings, cable entries, and changes caused by welding or coating. Parker enclosure examples show that mating geometry, surface condition, seal installation, and compression can affect leak performance.

How to Specify Gaskets, Flanges, Fasteners, and Cable Entries

Gasket selection depends on environment, mating materials, flange geometry, closure force, chemical exposure, service cycle, and whether EMI shielding is also required. An environmental seal and a conductive EMI gasket are not automatically interchangeable. Parker Chomerics distinguishes EMI/grounding gaskets that do not provide a weather seal from conductive elastomers that can combine shielding and environmental sealing.

For the RFQ, define the target ingress requirement, seal location, gasket space, fastener layout, connectors, cable entries, and validation method. A gasket alone does not make a BMS enclosure “IP67”; the completed assembly must meet the specified requirement.

How to Control EMI Shielding and Grounding in a BMS Enclosure

Where EMI Shielding Fails: Seams, Openings, and Coated Contact Surfaces

A metal enclosure is not automatically an effective EMI shield. Seams, slots, connectors, and poorly bonded joints can interrupt current continuity. Parker Chomerics notes that gaps or slots can allow electromagnetic fields through a shield unless current continuity is maintained across them.

Surface treatment is therefore part of the EMC discussion. If a lid, panel, or grounding point requires electrical contact, coating or anodizing may need masking or another engineered contact method. Mark those areas on the drawing and validate the finished enclosure, not only the bare-metal prototype.

When to Use Grounding, Bonding, or Conductive EMI Gaskets

Grounding and bonding create intentional electrical paths; EMI gaskets can maintain conductive continuity across joints. Selection should consider shielding targets, compression, flange design, environmental sealing, and corrosion compatibility. Parker describes grounded metallic shields and conductive interfaces as methods for controlling electrical noise and EMI.

Before requesting a quote, obtain EMC requirements from the electrical team. Identify grounding points, contact surfaces, connector interfaces, and whether the same joint must also provide a weather seal. This reduces unnecessary gasket cost and redesign after EMC testing.

How to Manage Heat in a Sealed BMS Enclosure

Why Sealed BMS Enclosures Overheat and How to Build the Heat Path

Increasing environmental sealing can reduce natural airflow, so the first thermal question is whether heat-producing components have a controlled path to a surface that can reject heat. Map the route from the component through the PCB or interface material to the enclosure wall, then evaluate it under the expected mounting and ambient conditions.

Thermal pads or gap fillers may help where components cannot make direct contact with the housing. Henkel describes thermal gap fillers as materials used to couple heat-producing devices to an adjacent metal case or heat sink, especially across irregular gaps. Selection still depends on gap size, assembly stress, dielectric needs, serviceability, heat load, and allowable temperature. Those inputs should come from the electrical or thermal design.

How to Prevent BMS Enclosure Problems With DFM

Control Flatness, Tolerances, Welding Distortion, and Surface Masking

A housing may fit in CAD and fail after bending, welding, riveting, or coating. Prioritize sealing-face flatness, connector position, PCB mounting, grounding surfaces, and assembly stack-up; tight nonfunctional tolerances can add cost without reducing risk.

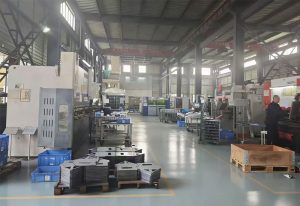

CK Metal Tech’s sheet-metal capability includes laser cutting, CNC punching, bending, riveting, welding, grinding, and related processes, with aluminum alloy and galvanized sheet among the listed materials. Early sheet metal enclosure fabrication review is therefore useful when a BMS housing combines sealing faces, welded joints, masked electrical contacts, and finished assembly interfaces. The supplier should identify distortion, bend-access, joining, coating, and inspection risks before production tooling or fixtures are committed.

What to Validate Before Moving From Prototype to Production

Prototype approval should cover more than appearance. Check PCB and connector fit, lid closure, gasket contact, critical dimensions, grounding interfaces, thermal behavior, finish condition, and any project-specific ingress or EMC tests. If a revision changes a flange, connector, fastener, coating, or thermal contact, repeat the validation affected by that change.

For projects moving into sourcing, CK Metal Tech’s custom BMS enclosure route is confirmed for EV and energy-storage applications and uses CNC punching, bending, riveting or welding, and anodizing or spray coating. Production release should follow an agreed DFM and inspection plan rather than visual sample approval alone.

What Should You Include in a Custom BMS Enclosure RFQ?

Send enough information for suppliers to quote the same scope: 2D drawings and 3D models, revision level, application, material and thickness, finish, critical dimensions, prototype quantity, target production quantity, and assembly requirements. Add the sealing/IP target and test method, EMI or grounding contact zones, thermal interfaces, connector details, and masked surfaces.

If a requirement is still open, identify it instead of letting the supplier assume. Buyers can review precision metal manufacturing and assembly solutions when a project combines cutting, forming, welding, finishing, machining, or assembly. CK Metal Tech publicly lists these integrated capabilities.

How to Choose a BMS Enclosure Manufacturer

Compare DFM, Fabrication, Finishing, and Validation Capability—not Price Alone

A low unit price has little value if the enclosure later needs rework. Compare suppliers on drawing review, material capability, forming and joining, finishing, inspection, revision control, and communication.

CK Metal Tech positions its manufacturing scope around precision sheet metal, stamping, machining, surface painting or powder coating, and assembly. For a BMS enclosure, the practical question is whether the supplier understands how these processes interact with sealing, EMI, thermal, and assembly requirements.

Conclusion

A robust BMS enclosure design balances material, IP sealing, EMI continuity, thermal paths, and manufacturability. Before requesting pricing, prepare drawings, material and finish requirements, operating conditions, sealing and EMC needs, thermal inputs, target quantities, and critical inspection points. Buyers can contact CK Metal Tech with these details for a manufacturability review.

FAQs

What material is best for a BMS enclosure?

There is no universal choice. AL5052 may suit formed sheet-metal designs, AL6061 projects with machined or more rigid features, and SECC steel enclosure designs. Confirm geometry, weight, corrosion, grounding, thermal, forming, and finishing needs first.

How do I design a BMS enclosure for IP67?

First confirm that IP67 is required. Then review flange flatness, gasket design, closure force, fasteners, connectors, cable entries, weld distortion, and finished surfaces. The completed enclosure must be validated against the specified ingress-protection requirement.

Does a BMS enclosure need EMI shielding?

It depends on system EMC requirements. A metal housing can support shielding, but seams, openings, connectors, coatings, and weak bonding may reduce effectiveness. Define interfaces with the electrical team and verify the finished configuration.

How do I cool a sealed BMS enclosure?

Identify the heat-producing components and create a controlled path toward the enclosure or another heat-rejection surface. Interface materials may help across gaps, but confirm heat load, allowable temperatures, geometry, and operating environment first.

A telecom enclosure design for future 6G infrastructure should begin with equipment heat load, installation site, environmental exposure, electromagnetic compatibility, maintenance access, and manufacturing scope—not a “6G-ready” label. For equipment engineers and B2B buyers, the objective is to convert operating conditions into a buildable specification, a testable prototype, and a comparable RFQ.

What “6G-Ready Telecom Enclosure” Can—and Cannot—Mean Today

Separate Current Enclosure Requirements from Unfinished 6G Specifications

IMT-2030, the ITU framework associated with 6G, is still progressing through technical requirements, candidate technology, evaluation, and approval. Its radio-interface performance requirements do not prescribe one sheet metal material, IP rating, cooling method, or corrosion class for telecom cabinets. A product may be designed for future-generation communication equipment, but “6G compliant enclosure” is not a complete specification unless the customer defines the equipment and acceptance requirements.

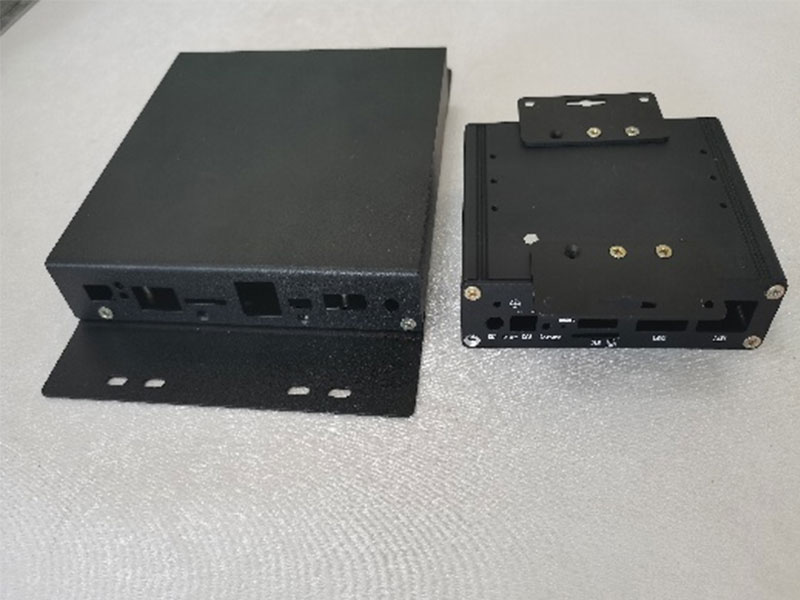

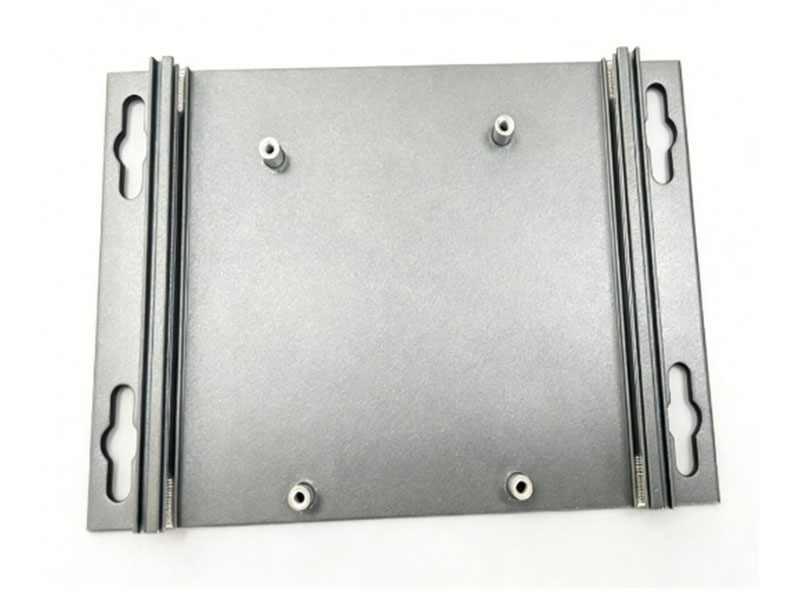

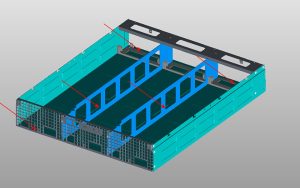

A 6G network communication box enclosure can serve as a build-to-print product example, but its thermal, EMC, ingress, and corrosion performance must still be verified against the application. RFQs should replace broad future-ready claims with measurable requirements.

Define the Equipment, Installation Site, and Supplier Scope

Indoor boxes, outdoor pole-mounted enclosures, roadside cabinets, and weather-protected housings face different temperature, moisture, contamination, vibration, and service conditions. ETSI environmental standards classify telecommunications equipment by deployment and environmental severity, so the site should be defined before materials and tests are selected.

The OEM should provide equipment layout, heat dissipation, weight, mounting, cable interfaces, and access direction. The enclosure supplier converts those inputs into manufacturable panels, doors, joints, mounting features, and finishes. Buyers reviewing about Zhejiang Chuangkai Mechanical and Electrical Technology Co., Ltd. should distinguish confirmed manufacturing processes from project-specific performance claims.

Balance Thermal Management, Ingress Protection, and Condensation Control

Build the Thermal Input Before Selecting a Cooling Method

Cooling cannot be selected from enclosure size alone. Define internal heat dissipation, component distribution, ambient temperature limits, solar exposure, allowable internal temperature, and expected dust loading. These factors determine whether passive, ventilated, or sealed cooling is appropriate.

Open ventilation may suit a controlled indoor location but not a site exposed to rain, salt, or industrial contaminants. A highly sealed enclosure can improve ingress protection while trapping heat. The RFQ should state who is responsible for thermal analysis, prototype measurement, and approval.

Prevent Condensation Without Compromising Environmental Protection

An enclosure can resist external water and still develop internal condensation. Temperature cycling changes internal pressure, moisture may enter during maintenance, and humid air can condense on cooler metal surfaces. The risk depends on climate, sealing, shutdown cycles, internal heat, and orientation.

Possible controls include pressure-equalizing vents, drainage, internal heaters, or controlled circulation. Prototype testing should use the final door, gasket, cable glands, filters, and installed accessories. If condensation occurs, review the complete moisture and temperature path rather than assuming the gasket alone failed.

Design EMC Continuity into the Sheet Metal Enclosure

Control Seams, Doors, Panels, Gaskets, and Grounding Paths

A metal enclosure does not automatically provide adequate shielding. Electrical discontinuities can occur at doors, removable panels, hinges, painted joints, fasteners, and long seams. ETSI EN 300 386 defines EMC requirements for telecommunications network equipment, but compliance applies to the assembled equipment and its interfaces, not merely the metal housing.

Drawings should identify conductive contact areas, grounding studs, gasket locations, fastener patterns, and surfaces that must remain free of insulating coating. Conductive gaskets may suit frequently opened panels, but selection depends on frequency range, compression, environment, and maintenance.

Manage Ventilation and Cable Entries Without Creating Shielding Leaks

Ventilation openings and cable entries often become weak EMC paths. Large louvers may improve airflow but interrupt shielding continuity. Cable glands may preserve environmental sealing while still requiring bonding, filtering, or controlled placement.

Power, signal, and radio-frequency interfaces should be reviewed together with airflow and access. Powder coating can also isolate contact surfaces, so masked areas, door frames, grounding points, and fastener interfaces should be marked on the drawing. Final performance should be confirmed through system testing.

Select Materials and Corrosion Protection for the Deployment Environment

Compare Aluminum, Coated Steel, and Stainless Steel by Application

Material selection should consider stiffness, weight, fabrication, welding, electrical continuity, corrosion exposure, coating compatibility, and lifecycle cost. Coated steel may suit many moderate environments; aluminum can reduce weight; stainless steel may suit more demanding exposure but can increase material and fabrication cost. No single option fits every outdoor telecom cabinet.

Substitutions should require approval because alloy, coating, or temper changes may affect bending, welding, grounding, and corrosion.

CK Metal Tech’s precision sheet metal manufacturing capabilities include laser cutting, punching, bending, riveting, welding, and processing of stainless steel, carbon steel, aluminum alloy, galvanized sheet, and aluminum-zinc-coated sheet. Suitability still depends on the drawing and deployment requirements.

Prevent Edge, Fastener, Weld, and Galvanic Corrosion

Corrosion commonly starts at cut edges, holes, welds, scratches, fasteners, and uncoated grounding areas. These locations may have thinner protection, heat-affected surfaces, trapped moisture, or dissimilar-metal contact.

The RFQ should identify substrate, pretreatment, coating system, masking, fastener material, repair method, and acceptance criteria. Where different metals meet, review galvanic compatibility and consider isolation or sealing.

A salt-spray duration alone is incomplete. Buyers should also define specimen condition, scribe method if applicable, evaluation criteria, and how the laboratory test relates to actual service exposure.

Validate the Prototype Before Repeat Production

Define Test Ownership and the Required Assembly State

Thermal, EMC, ingress, corrosion, and mechanical checks may involve different parties. Thermal and EMC acceptance may require actual electronics, cables, software load, and cooling components.

Testing an empty enclosure may not represent the completed system. Cable glands, vents, locks, mounting plates, and purchased hardware can change sealing, airflow, and electrical continuity. Define the test sample, assembly state, test owner, report format, and approval authority. Before repeat production, freeze approved drawings, materials, gaskets, masking, and inspection points.

Review Common Failure Modes Before Production Approval

Prepare a Comparable RFQ and Qualify the Manufacturer

Include the Technical Inputs Required for a Quote

A custom telecom enclosure RFQ should include controlled 2D drawings, a 3D model, BOM, equipment layout, weight, heat dissipation, installation site, mounting method, ambient conditions, ingress requirements, EMC interfaces, material, finish, grounding points, cable entries, prototype quantity, annual volume, testing, assembly, and packaging.

When requirements remain open, request a DFM review and prototype quotation rather than a production price based on assumptions. The quotation should identify drawing revision, included components, outsourced processes, testing responsibility, and exclusions.

Evaluate Supplier Capabilities, Evidence, and Red Flags

A qualified manufacturer should explain the route from cutting and bending through joining, finishing, inspection, assembly, and packaging. Ask how door alignment, gasket compression, conductive contact areas, masked features, cable openings, and engineering changes are controlled. Warning signs include unsupported “6G-ready,” “IP-rated,” or “EMC-shielded” claims, quotations without revision references, and no distinction between enclosure inspection and complete-system validation.

CK Metal Tech provides precision metal manufacturing and assembly capabilities covering sheet metal processing, machining, stamping, surface finishing, and component assembly. Its website also lists communication enclosure products; the suitable process remains dependent on material, geometry, quantity, and application.

Conclusion

A telecom enclosure for future 6G equipment should be specified through measurable project conditions, not a future-ready label. Define the equipment, environment, heat load, EMC interfaces, moisture risks, corrosion exposure, maintenance access, and verification responsibility before comparing suppliers.

Buyers can submit telecom enclosure drawings for a manufacturing review with the model, dimensions, material, site conditions, heat information, quantity, finish, testing expectations, and assembly scope. CK Metal Tech can then review the manufacturing route without treating unconfirmed thermal, EMC, ingress, or corrosion performance as an established product claim.

Frequently Asked Questions

Is there a final 6G telecom enclosure standard?

No universal final standard defines the material, cooling route, IP rating, or corrosion class for every 6G enclosure. Requirements should come from the specific equipment, deployment environment, applicable standards, and customer test plan.

How do you cool a sealed telecom enclosure?

The suitable method depends on internal heat, ambient temperature, solar exposure, enclosure size, allowable temperature, and ingress requirements. Options may include passive dissipation, heat exchangers, or sealed active cooling, subject to engineering verification.

How does powder coating affect EMC shielding?

Powder coating is electrically insulating and may interrupt grounding or bonding at doors, panels, fasteners, and contact surfaces. Drawings should identify masked conductive areas and final EMC test requirements.

Which material is suitable for an outdoor telecom cabinet?

The choice depends on weight, stiffness, fabrication, corrosion environment, coating system, electrical bonding, maintenance, and lifecycle cost. Material grade and finish should be verified against the deployment specification.

What information is needed for a custom telecom enclosure quote?

Provide drawings, BOM, equipment arrangement, weight, heat dissipation, installation method, environment, ingress and EMC requirements, material, finish, quantity, testing, assembly, and packaging.
